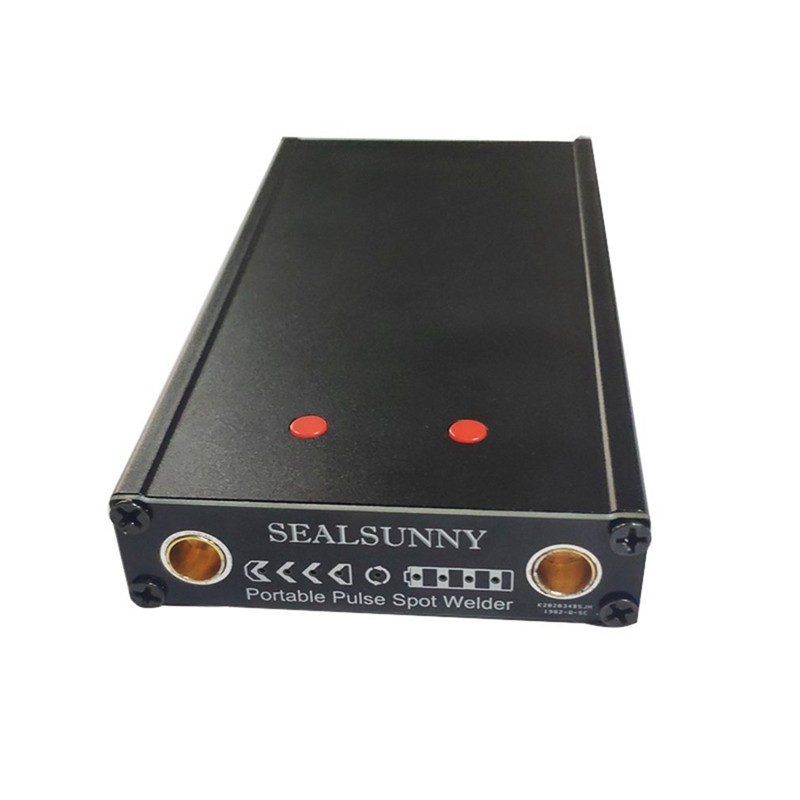

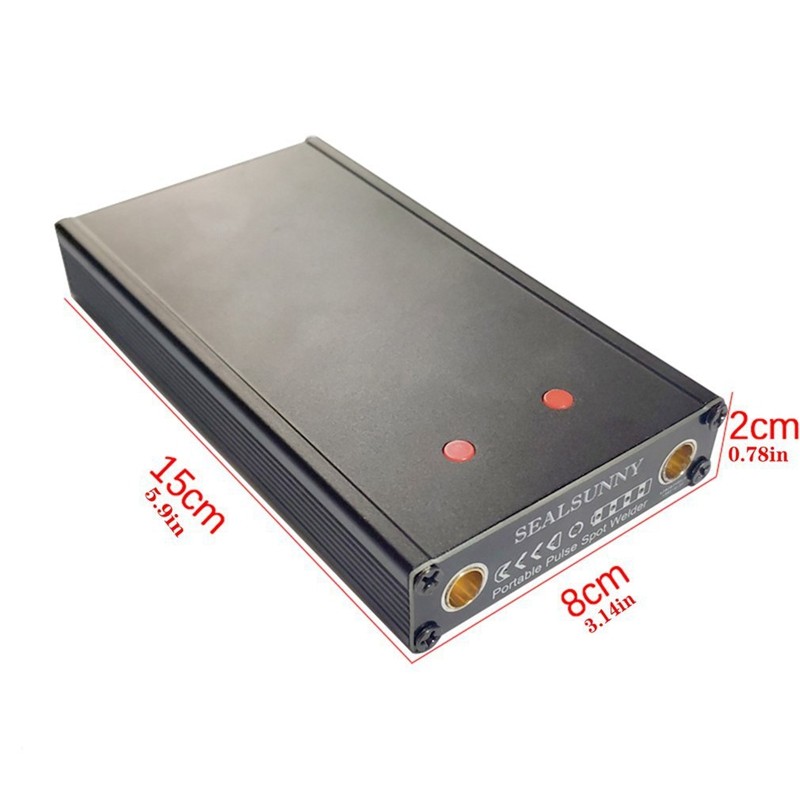

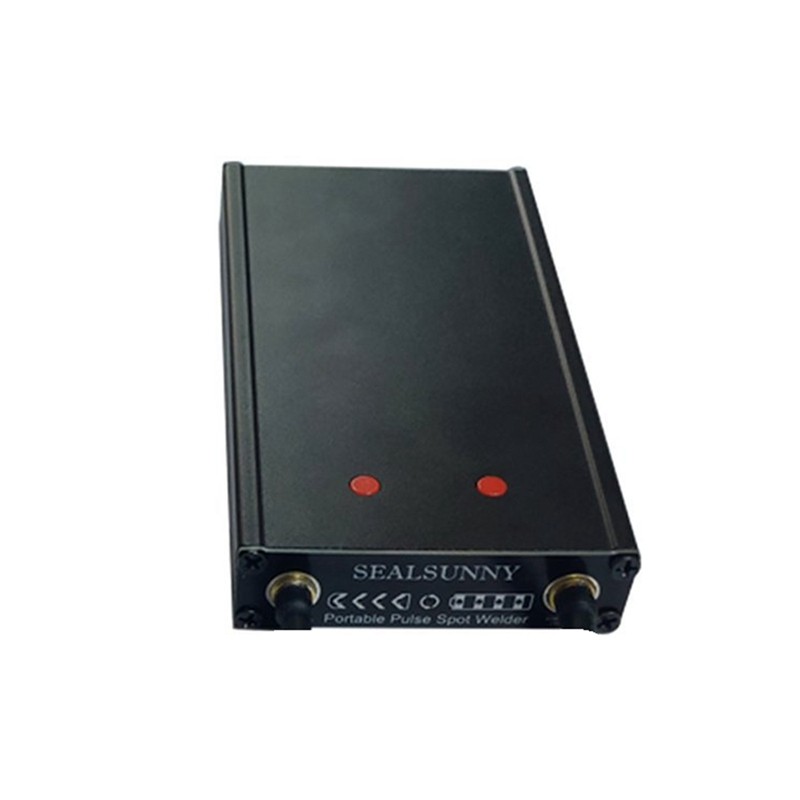

Portable 4 Gears Adjustable Mini DIY Spot Welding Machine for 18650 Spot Welding Tool Kit

Portable 4 Gears Adjustable Mini DIY Spot Welding Machine for 18650 Spot Welding Tool Kit

Product details of Portable 4 Gears Adjustable Mini DIY Spot Welding Machine for 18650 Spot Welding Tool Kit

Description:This product is suitable for daily or small spot welding/butt welding work at home. It is automatically triggered without a switch, and the operation is convenient and quick.Precautions:⑴It can be operated while charging, and it will enter standby mode when charging;⑵It is recommended to charge it once half a year when it is not used for a long time, and the charge is 75%⑶ Continuous use of the soldering pen will cause hotness, it is recommended to wear to operate⑷Do not drop, flood, heat and other harmful operations to electronics

Description:This product is suitable for daily or small spot welding/butt welding work at home. It is automatically triggered without a switch, and the operation is convenient and quick.

Precautions:⑴It can be operated while charging, and it will enter standby mode when charging;⑵It is recommended to charge it once half a year when it is not used for a long time, and the charge is 75%

⑶ Continuous use of the soldering pen will cause hotness, it is recommended to wear to operate

⑷Do not drop, flood, heat and other harmful operations to electronics

⑸The blackening of the tip of the soldering pen will affect the effect, which can be worn off with sandpaper;⑹If the spot welding is too long or the shutdown is caused by good contact, just restart it

Instructions:

on: Click the button 6

Shut down: 1. Double-click the button 6 ;2. Automatically shut down after three minutes of standby

Gear adjustment: Press 7 to adjust gears, click to change gears, and the cycle is first gear--second gear--third gear--fourth gear--standby

Standby: 1. After the fourth gear, click to enter the standby state;2. It enters the standby state without spot welding for more than 30 minutes.

Spot welding: After turning on the machine, select the required gear and Press the welding object with the soldering pen to spot welding.

Spot welding precautions: 1. Please fix the spot welding items in the spot welding mode;2. Please keep the welding objects in a flat state;3. Keep cooling time about 10S after welding

Parameter:

capacity: 5AH

Output voltage: 4.2V max

Output current: maximum 500A

Design current: maximum 1000A

Input parameters: 5V/2.1A

Support welding: 0.1-0.2 nickel sheet, iron sheet, stainless steel

Welding time: several milliseconds

Charging voltage: 4.5~5.5V (current≥2

Portable 4 Gears Adjustable Mini DIY Spot Welding Machine for 18650 Spot Welding Tool Kit

Description:This product is suitable for daily or small spot welding/butt welding work at home. It is automatically triggered without a switch, and the operation is convenient and quick.

Precautions:⑴It can be operated while charging, and it will enter standby mode when charging;⑵It is recommended to charge it once half a year when it is not used for a long time, and the charge is 75%

⑶ Continuous use of the soldering pen will cause hotness, it is recommended to wear to operate

⑷Do not drop, flood, heat and other harmful operations to electronics

⑸The blackening of the tip of the soldering pen will affect the effect, which can be worn off with sandpaper;⑹If the spot welding is too long or the shutdown is caused by good contact, just restart it

Instructions:

on: Click the button 6

Shut down: 1. Double-click the button 6 ;2. Automatically shut down after three minutes of standby

Gear adjustment: Press 7 to adjust gears, click to change gears, and the cycle is first gear--second gear--third gear--fourth gear--standby

Standby: 1. After the fourth gear, click to enter the standby state;2. It enters the standby state without spot welding for more than 30 minutes.

Spot welding: After turning on the machine, select the required gear and Press the welding object with the soldering pen to spot welding.

Spot welding precautions: 1. Please fix the spot welding items in the spot welding mode;2. Please keep the welding objects in a flat state;3. Keep cooling time about 10S after welding

Parameter:

capacity: 5AH

Output voltage: 4.2V max

Output current: maximum 500A

Design current: maximum 1000A

Input parameters: 5V/2.1A

Support welding: 0.1-0.2 nickel sheet, iron sheet, stainless steel

Welding time: several milliseconds

Charging voltage: 4.5~5.5V (current≥2

Specifications of Portable 4 Gears Adjustable Mini DIY Spot Welding Machine for 18650 Spot Welding Tool Kit

SKU DQEFAX04

What’s in the box

1 * Welding Machine
