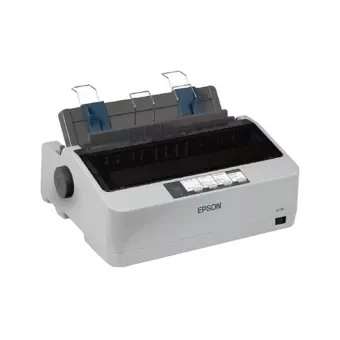

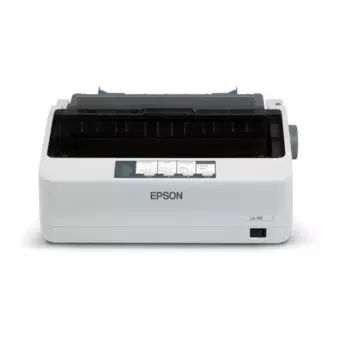

Epson LQ-310 Dot Matrix Printer

Epson LQ-310 Dot Matrix Printer

Product details of Epson LQ-310 Dot Matrix Printer

Model: Epson LQ-310

Print Speed: 347 / 416 cps

Specification

Functions

Print

Technology

Method: Impact dot matrix

Number of Pins

24 pins

Speed

Print:10/12 cpi, 347/416 cps, Draft: 10/12/15 cpi 260/312/390 cps, Condensed: 17/20cpi 222/260 cps

MTBF

Approx. 10,000 POH (25% Duty)

Print Head Life

Approx. 400 million strokes/wire

Character Sets

Italic table, PC437(US Standard Europe), PC850 (Multilingual), PC860, (Portuguese), PC861 (Icelandic), PC863 (Canadian-French), PC865 (Nordic), Abicomp, BRASCII, Roman 8, ISO Latin 1, PC 858, ISO 8859-15

Supported Bitmap Fonts

Epson Draft: 10, 12, 15 cpi; Epson Roman & San Serif: 10, 12, 15 cpi, Proportional; Epson Courier: 10, 12, 15 cpi; Epson Prestige: 10, 12 cpi; Epson Script, OCR-B, Orator & Orator-S: 10cpi; Epson Script C: Proportional

Supported Scalable Fonts

Epson Roman, Epson San Serif, Epson Roman T & Epson San Serif H: 10.5pt., 8pt. – 32pt. (every 2pt.)

Barcode Sets

EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, Postnet

Envelopes Media

No.6 : Length-92 mm, Width-165 mm Thickness-0.16 ~ 0.52 mm, No.10 : Length-105 mm, Width-241 mm Thickness-0.16 ~ 0.52 mm

Continuous Paper

Paper Path: Tractor & Manual Insertion: Rear in, Top out

Roll Media Handling

216mmx0.07-0.09mm, Roll Paper Holder

Multipart Copy

Original + 3 copies

Print Direction

Bi-direction with logic seeking, Tractor: Rear in, Top Out, Manual Insertion: Rear in, Top Out.

Emulation

ESC/P2 and IBM PPDS emulation

Memory

Data Buffer: 128KB

Supported Consumables

Ribbon Cartridge Black: 2.5 million characters – S015634

Interface

Bi-directional parallel interface (IEEE-1284 nibble mode supported), USB 2.0 Full-Speed, Serial

Control Panel

Display: 4 switches and 5 LEDs

Voltage

AC 120V / AC 220 – 240V

Rated Frequency

50Hz ~ 60Hz

Power Consumption

Operating: Approx. 22W (ISO/IEC 10561 Letter pattern), (ENERGY STAR compliant), Sleep Mode: Approx. 1.0 W (120V) / 1.3 W (230V), Auto-Off Mode: Approx. 0.5W, Power Off 0W

OS Compatibility

Microsoft® Windows® 2000 / XP / 7, Microsoft® Windows Vista®

Environment

Temperature: 5 ~ 35°C, Humidity: 10 ~ 80 % RH

Dimension

362 x 275 x 154 mm

Weight

4.1kg

Specifications of Epson LQ-310 Dot Matrix Printer

BrandEpson

SKU DQECMP07

Printer Connectivity TypeUSB

Input Tray Capacity (papers)201 Sheet and up

Double Sided PrintingNo

What’s in the box

LQ-310 Dot Matrix Printer
